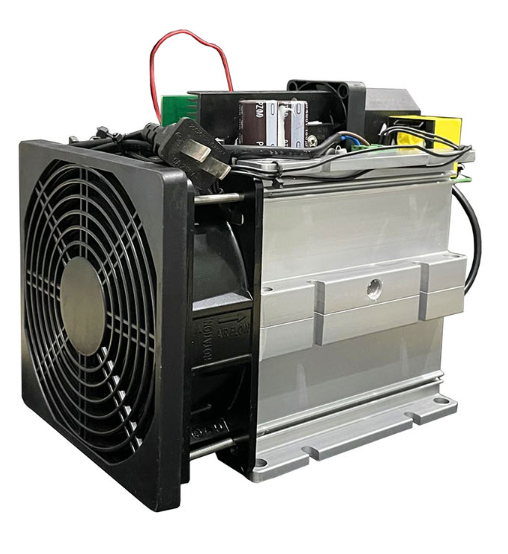

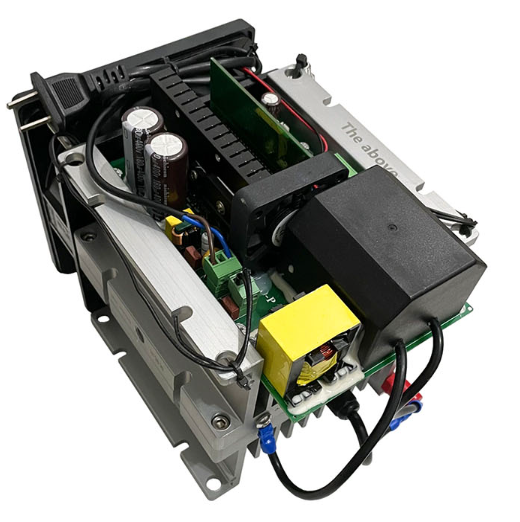

Product feature
1. It uses corona discharge technology to produce ozone
2. It adopts Imported material of high pure ceramic panel and Aeronautical aluminium material.
3. Ozone output : 25G/hr
4. Cooling way : Air cooling for internal and external electrode.
5. High ozone concentration up to 160mg/L
Product parameter
| Item Model | OS-OZK25G |
| Ozone output（g/h） | 25 |
| oxygen flow rate（m3/h） | 0.3 |
| Rated ozone concentration（mg/l） | 85 |
| Maximum ozone concentration（mg/l） | 160 |
| Ozone Output Adjustable Range | 0~100% |
| Ozone inlet pressure（Mpa） | 0.12 |
| Ozone outlet pressure（Mpa） | 0.1 |
| Maximum power matching（KW） | 0.2 |
| Transformer matching | Resonant inductor + transformer (corresponding to power supply) |
| Working frequency（HZ） | 11-15K |
| Input working voltage | 220V/50HZ |
| Cooling way | Air cooling |
| Size（L*H*Wmm） | 140*180*200 |
